Code Map

Introduction

What is the Code Map?

The Code Map screen is Testver’s structural index of your automation codebase. When you open it, Testver scans every source file in the project, extracts each method (and step definition, page object, helper, fixture, and test), and works out how they connect: which tests reach which methods, which methods call which, and which methods nothing reaches at all. The result is presented as four interlocking views — Inventory, Quality, Graph, and Steps — backed by a detail drawer, AI assists, and an export.

Think of it as an X-ray of your codebase. From the outside a test suite looks like a stack of green checkmarks; the Code Map lets you see through that surface to the skeleton underneath — the load-bearing helpers every test leans on, the orphaned page objects nobody calls anymore, the over-grown methods that are hard to maintain, and the duplicate code that drifts out of sync. Nothing here changes your project; it only reveals what is already there.

Who this guide is for

QA automation engineers who want to find dead code, trim unused page-object methods, and keep a framework lean.
SDETs / framework owners auditing test architecture — which helpers are over-used, which files are unmaintainable, where duplication is creeping in.
Tech leads & reviewers who need a fast, file-by-file health read before a refactor or a release.
BDD / Cucumber teams who want to see step-definition usage, undefined steps, ambiguous matches, and duplicate definitions in one place (the Steps view).
Anyone onboarding to an unfamiliar automation repo who wants a map before diving into individual files.

Key terms (glossary)

These terms appear throughout the screen, in column headers, drawer tags, and quality hints. Skim this table once and the rest of the guide reads easily.

Term	What it means in the Code Map
Method	A single function/method extracted from a source file — the basic unit of the Inventory. Each has a name, optional class, file, line, role, language, visibility, LOC, and complexity.
Role	How Testver classifies the method’s purpose: Page Object, Helper, Support, Step Def, Fixture, Test, or Source. Shown in the Role column and as a tag in the drawer; used by the role filter.
Page object	A method belonging to a page-object class — the UI-interaction layer (locators + actions) that tests drive through. Role label page.
Helper	A reusable utility/support method (role helper or support) called by tests or other methods rather than driving the UI directly.
Step def (step definition)	A Cucumber/Gherkin step implementation — the code bound to a Given/When/Then pattern. Role step; explored in depth in the Steps view.
Dependency / call	A directed relationship between two methods: A calls B. The drawer lists both Calls (what this method invokes) and Called by methods (its callers).
Used by tests	The number of distinct tests whose execution path reaches this method (directly or transitively). Shown in the Tests column and as the default sort.
Unused	A method that no test reaches and nothing calls — a candidate for removal, flagged with an amber Unused badge. Static analysis only; see the warning below.
Confirmed dead	A method that is statically unused AND was never executed at runtime according to imported coverage data. Stronger signal than “unused”. Only available when coverage is present.
Cyclomatic complexity (Cx)	A count of independent paths through a method — roughly, how many branches/decisions it contains. Higher = harder to test and maintain. Shown in the Cx column; color-coded amber at ≥ 6, red at ≥ 10.
Orphan file	A source file in which every automation method is unused — a whole-file dead-code candidate (Quality view).
Orphan locator	An element/selector definition that is referenced nowhere else in the project (Quality view). Best-effort detection — verify before removing.
Entry point	A method Testver treats as a root of the call graph (e.g. a test). Entry-point tests are filtered out of the Inventory list to keep it focused on reusable code.
Maintainability score / grade	A heuristic 0–100 score (with an A–F grade) per file, combining complexity, size, unused count, and duplication. Lower = needs attention.

Supported languages & frameworks

The Code Map is language-aware: each method carries its detected language, and the source viewer and complexity heuristics adapt accordingly. Coverage of the analysis includes:

JavaScript / TypeScript automation (Playwright, WebdriverIO, Cypress-style frameworks, plain JS/TS test code).
Python test code (the highlighter and comment rules switch to #-style line comments for Python/Ruby).
Java, C# and other C-family languages with classes, visibility modifiers, and // / /* */ comments.
BDD / Gherkin (Cucumber) — features, scenarios, tags, and step definitions; the Steps tab appears only when Gherkin is detected in the project.
Page-object, helper, support, and fixture patterns common to UI automation, classified automatically into roles.

How the analysis works

Zero-config — there is nothing to set up. Open the screen and Testver indexes the project automatically; the header shows the method, unused, test, and file counts as soon as it finishes.
Fast & local — indexing runs against your local project files. The stats row reports the elapsed time (e.g. “indexed in 420ms”), so you can see how quick it is.
Cached & incremental — results are cached. Re-opening the screen reuses the existing index; you only pay the full cost again when you press Rebuild (a forced re-scan).
Read-only & safe — the Code Map never modifies your code. Every action (browsing, exporting, even AI assists) only reads. The drawer states explicitly that AI suggestions change nothing in your project.
Coverage-aware (optional) — if runtime coverage data is available, the Code Map merges it in to upgrade “unused” candidates to Confirmed dead and shows per-method run-status tags.

Getting Started

Opening the Code Map

From the main navigation, open the Code Map screen (route /code-map). The header shows a network icon, the title Code Map, and the subtitle “Method inventory & test usage”.
On first load you’ll see “Indexing project…” with a spinner while Testver scans your files. This is the initial build.
When indexing finishes, the stats row appears (Methods, Unused, Tests, Files, optional Confirmed-dead, and the index time), and the Inventory view loads with the full method table.
You can also arrive here via a deep link from elsewhere — e.g. “Open in Code Map” from the Test Explorer passes ?symbol=<id> (optionally &name=<n>), which lands you on the Inventory view with that method’s drawer already open and the search pre-filled.

Screen layout

Area	Location	What it does
Header bar	Top	Title and subtitle on the left; the view toggle (Inventory / Quality / Graph / Steps) in the middle-right; and the global action buttons Rebuild, Copy cleanup task, Export CSV on the right.
Stats row	Below the header	At-a-glance counts: Methods, Unused, Tests, Files, an optional Confirmed-dead chip, and the index duration. Hidden until the index is ready.
Toolbar	Below the stats (Inventory & Steps only)	Search box, role/sort dropdowns, and filter toggles (Unused only, optional Confirmed dead), plus a “N shown” counter.
Main list / canvas	Center, scrollable	The active view’s content: the Inventory table, the Quality sections, the Graph canvas, or the Steps table/quality.
Detail drawer	Right side, slides in	Opens when you click a method (Inventory) or a step (Steps). Shows file link, tags, AI assists, relationships, and source. Width ~540px (max 48% of the viewport).

The views / tabs

Inventory — the searchable, sortable table of every method with its role, test usage, callers, complexity, and status. Your starting point.
Quality — health insights: module overview, duplicate clusters, complex methods, orphan files, tests without assertions, orphan locators, and file maintainability.
Graph — an interactive call-graph centered on a chosen “focus” method, showing the tests, callers, the focus, and its callees as colored nodes.
Steps — BDD/Gherkin only. A step-definition inventory plus a quality sub-view (undefined, ambiguous, duplicate steps, and tags). This tab is hidden entirely unless Gherkin is detected.

Reading the stats row

Badge	Meaning
Methods	Total number of indexed methods (the size of the inventory).
Unused (amber)	How many methods are statically unused — no test reaches them and nothing calls them. Removal candidates.
Tests	Number of tests discovered in the project.
Files	Number of source files indexed.
Confirmed dead (emerald, optional)	Shown only when coverage data is available. The count of methods that are both statically unused and never executed at runtime, annotated with the coverage format. The chip’s tooltip names the coverage source.
indexed in …ms (right-aligned)	How long the most recent index took — a quick performance read.

These four controls sit in the header and apply across the whole screen (the view toggle) or to the underlying index/data (the action buttons).

Rebuild

Forces a fresh re-index of the project, bypassing the cache. Use it after you’ve edited code and want the map to reflect the new state. While it runs, the button shows a spinner and is disabled; when it finishes, the views reload with the new data.

Copy cleanup task

Builds a Markdown checklist of every unused method, grouped by file, and copies it to your clipboard — ideal for pasting into a ticket, a PR description, or an AI coding assistant. Each entry is a checkbox with the class-qualified method name and its line number.

If coverage is available, methods that are also never executed at runtime are annotated — confirmed dead (not covered at runtime).
The list ends with a reminder: Candidates only — verify before deleting (static analysis can miss reflection / dynamic dispatch).
A success toast confirms how many methods were copied. If there are no unused methods, you’ll see “No unused methods to clean up.”

Export CSV

Downloads the inventory as a CSV file for spreadsheets, audits, or reporting. The Steps view has its own separate Export CSV button that exports the step-definition data instead. If an export fails, an error toast explains why.

View toggle

The segmented control that switches between Inventory, Quality, Graph, and Steps. The active view is highlighted. The Steps segment is only present for Gherkin/BDD projects — if no Gherkin is detected, it simply doesn’t appear.

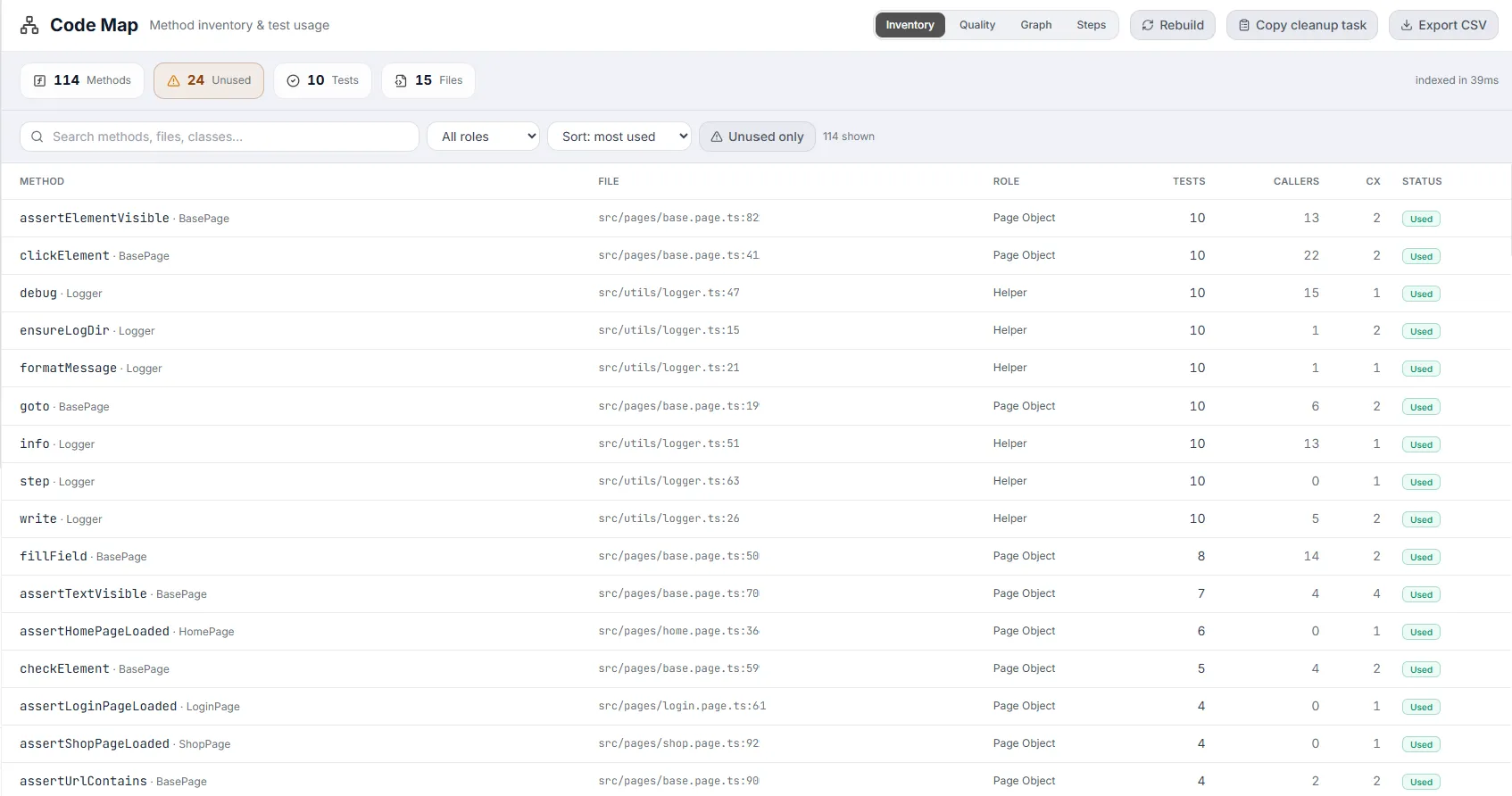

Inventory View

The default view: a single sortable, filterable table of every reusable method in the project. Entry-point tests are excluded so the list stays focused on the code your tests use.

Control	How to use it
Search box	Type to filter by method name, file path, or class name (case-insensitive, matches any of the three). Placeholder: “Search methods, files, classes…”.
Role dropdown	”All roles” by default, or pick a single role (Page Object, Helper, Support, Step Def, Fixture, Test, Source) to narrow the list. Only roles actually present in the project appear.
Sort dropdown	Sort: most used (by test count, default), most callers (by caller count), name (A–Z), or file (by path, then line).
Unused only (toggle)	When on (amber), shows only methods flagged unused — your dead-code shortlist.
Confirmed dead (toggle, optional)	Appears only with coverage. When on (red), narrows further to methods that are unused and never ran at runtime. Tooltip: “Statically unused AND never executed at runtime”.
N shown counter	A live count of how many rows pass the current filters.

The columns

Column	Meaning
Method	The method name (monospace), with its class shown after a · separator when present.
File	The file path and start line (file:line), truncated with a tooltip showing the full path.
Role	The classified role label (Page Object, Helper, Step Def, etc.).
Tests	How many tests reach this method — the usage signal. Higher numbers mark load-bearing code.
Callers	How many other methods call this one.
Cx	Cyclomatic complexity. Colored gray normally, amber at ≥ 6, red at ≥ 10. Header tooltip: “Cyclomatic complexity”.
Status	Used (emerald) when tests reach it; Unused (amber) when nothing does; Indirect (gray) when no test reaches it directly but it isn’t flagged unused.

Opening a method

Click any row in the table. The row highlights and the Method Details drawer slides in from the right.
Click another row to switch the drawer to that method; the new selection highlights instead.
Close the drawer with the X in its header (or by clicking away within the screen’s flow).
If your filters exclude everything, you’ll see “No methods match your filters.” with a search icon — clear or loosen the filters to bring rows back.

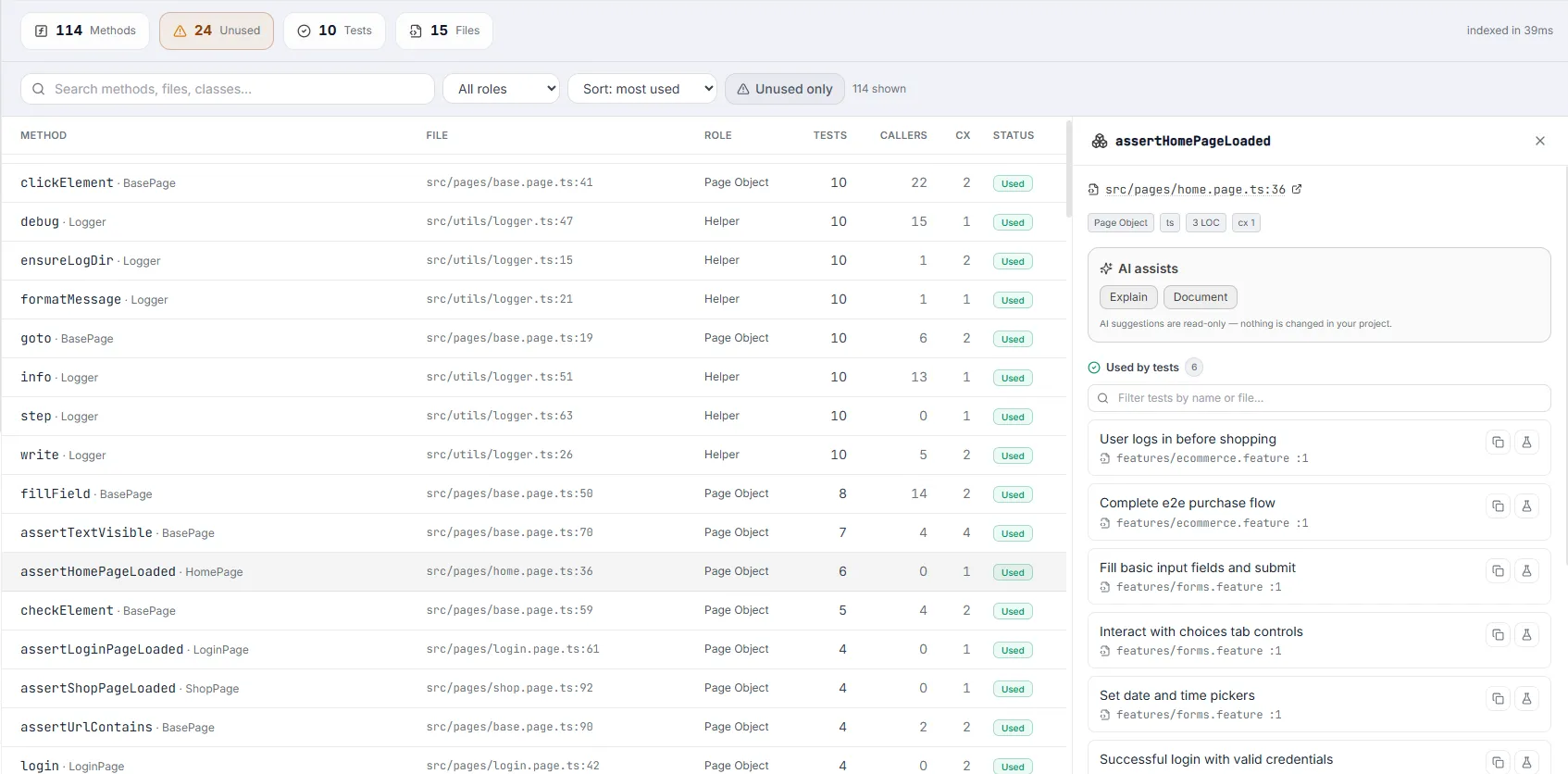

Method Details Drawer

The right-hand drawer is where you investigate one method in depth. It loads on demand (showing “Loading…” briefly) and is organized into the sections below.

The drawer header shows a box icon and the method name (monospace). Below it, a clickable file link — file:line with a file-code icon and an external-link icon — opens the method in the Project Explorer in a new browser tab, so the Code Map stays open and undistracted.

AI assists

A highlighted panel offers one-click AI helpers. Results stream into a copyable block below the buttons. The first two are always available; the last two appear only for unused methods.

Button	What it produces
Explain	A plain-language explanation of what the method does.
Document	A suggested documentation comment (doc-string) for the method.
Safe to delete? (unused only)	An AI verdict on whether the unused method is safe to remove, including a confidence percentage and reasoning.
Generate test (unused only)	A suggested test that would exercise the method, so it stops being unused if you’d rather keep it.

While a request runs, the button area shows a spinner and the label (e.g. “Explanation…”).
Each result has its own Copy button (with a “Copied” confirmation).
The panel footer states: AI suggestions are read-only — nothing is changed in your project.

Used by tests

Lists every test that reaches this method. Each entry (a TestCard) shows the formatted test name and a file link (file:line) that opens the file in the Project Explorer (new tab). Two icon buttons sit on the right: Copy test name (with a check confirmation) and Open in Test Explorer (a flask icon, new tab). When the list has more than four entries, an inline filter box appears — “Filter tests by name or file…”.

Called by / Calls

Two relationship sections map the method’s place in the call graph:

Called by methods — the method’s callers. Each row shows the (class-qualified) name and file; clicking opens it in the Project Explorer (new tab).
Calls — the methods this one invokes, in the same row format.
Each section shows a count badge, and both gain an inline filter box once they exceed four entries (“Filter methods by name or file…” / “Filter calls by name or file…”).

Source

The method’s source code, rendered in a theme-aware, syntax-highlighted block with a faux “traffic-light” title bar showing the language. A Copy button copies the raw source (with a “Copied” confirmation). If the source can’t be loaded, it shows “(source unavailable)”.

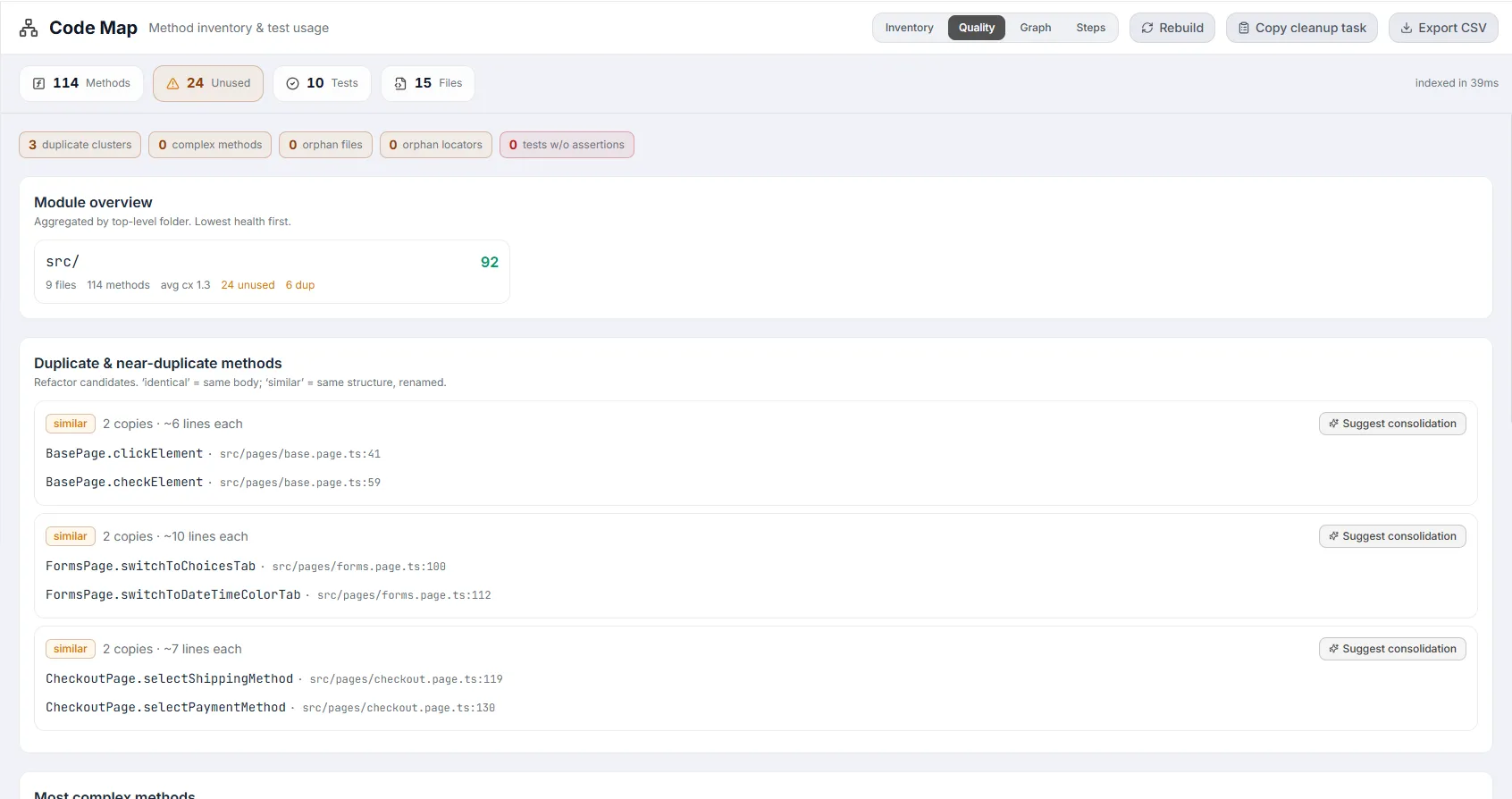

Quality View

The Quality view turns the index into actionable health insights. It opens with a row of summary chips — duplicate clusters, complex methods, orphan files, orphan locators (all amber), and tests w/o assertions (red) — then a stack of detailed sections. Each section header carries a one-line hint explaining what it flags.

Module overview

A grid of cards, one per top-level folder, aggregating maintainability across that module — sorted lowest health first so trouble spots surface at the top. Each card shows the folder name, a 0–100 score (colored emerald ≥ 80, amber ≥ 70, orange ≥ 60, else red), plus file count, method count, average complexity, and — when non-zero — unused and duplicate counts. How to act: start refactoring with the lowest-scoring modules.

Duplicate & near-duplicate methods

Clusters of methods with identical or similar bodies. Each cluster shows a kind badge — identical (red, same body) or similar (amber, same structure with renames) — the number of copies and approximate lines each, and a list of the member methods (click to open in the drawer). A Suggest consolidation AI button proposes how to merge them into one. How to act: extract the shared logic into a single helper. Hint shown: “Refactor candidates. ‘identical’ = same body; ‘similar’ = same structure, renamed.”

Most complex methods

A table of the highest-complexity methods, each row showing the method (clickable to the drawer), its cx (amber), max nesting depth, and LOC. How to act: break large branchy methods into smaller pieces and add focused tests. Hint: “High cyclomatic complexity / deep nesting / long bodies.”

Orphan files

Files in which every automation method is unused — whole-file dead-code candidates. Each row shows the file (amber file icon), is clickable to open in the Project Explorer (new tab), and notes how many unused methods it contains. How to act: confirm nothing references the file dynamically, then consider deleting it. Hint: “Every automation method in the file is unused — whole-file dead-code candidates.”

Tests without assertions

Tests where Testver detected no expect/assert — they may pass without actually verifying anything. Each entry shows the test name and file:line. How to act: review each and add the missing assertion (or confirm the verification happens elsewhere). Hint: “Tests with no detected expect/assert — possible gaps.”

Orphan locators

Element/selector definitions referenced nowhere else — unused locators. Each row shows the locator name and file:line and opens in the Project Explorer (new tab). How to act: verify, then remove. Hint warns it’s “best-effort — verify before removing.”

File maintainability

A ranked table (up to 40 files, lowest first) scoring each file on complexity, size, unused count, and duplication. Columns: File (clickable to the Explorer), Methods, Avg cx, Unused, and Score · Grade (A–F, color-coded from emerald for A down to red for F). How to act: target the bottom of the list for cleanup. Hint: “Heuristic score (complexity, size, unused, duplication). Lowest first.”

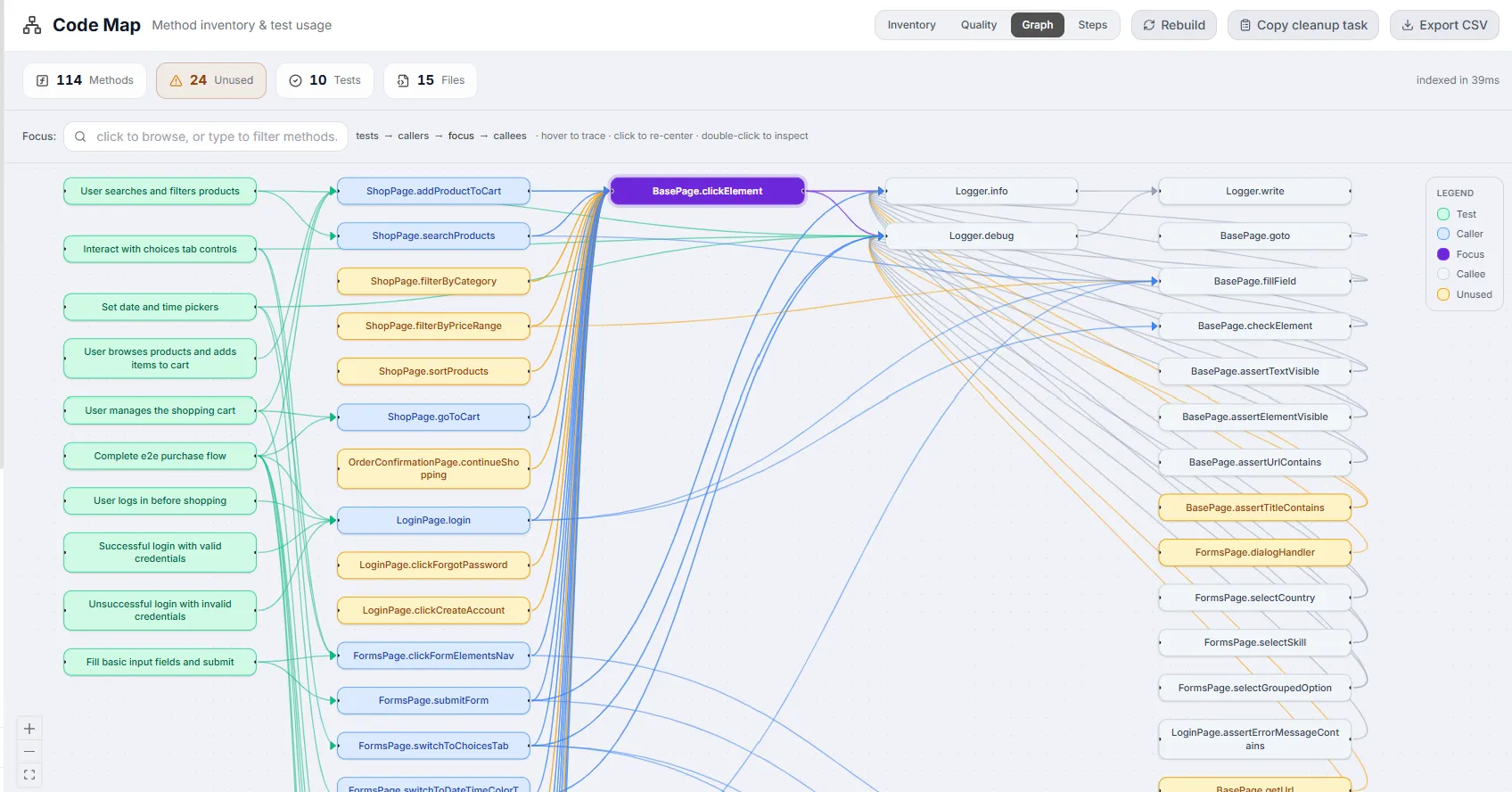

Graph View

An interactive call graph centered on a chosen focus method. It lays nodes out in columns — tests on the far left, then callers, the focus, its callees, and deeper dependencies — with arrows showing the direction of calls. On open it auto-selects the most-connected method as the focus so the canvas is never empty.

Focus search

Top-left is a Focus search box (“click to browse, or type to filter methods…”). Click it to browse all methods (most-connected first); type to filter by name or class. Pick a method from the dropdown to re-center the graph on it. The dropdown header tells you whether you’re seeing matches or the full “All methods · most connected first” list (capped at 60).

Node columns

Reading left to right, the columns are: tests → callers → focus → callees. A header strip restates this flow alongside the interaction hint “hover to trace · click to re-center · double-click to inspect”. If the focus method has a very large neighborhood, an amber “graph truncated (large neighborhood)” notice appears.

Legend

A legend panel (top-right) maps node colors to categories:

Node color	Category	Meaning
Green	Test	A test that reaches the focus method.
Blue	Caller	A method that calls (leads into) the focus.
Purple (solid)	Focus	The currently centered method.
Gray	Callee	A method the focus calls.
Amber	Unused	A node flagged unused.

Hover, click & double-click

Hover a node to spotlight it and its neighbors — unrelated nodes dim and the connecting edges brighten/animate, tracing that method’s connections.
Click a (non-test) node to make it the new focus and re-center the graph on it.
Double-click a (non-test) node to open it in the Inventory drawer (the Method Details).
Nodes can be dragged to tidy the layout; test nodes are not clickable as a focus.

Pan & zoom

Standard graph navigation: drag the empty canvas to pan, scroll to zoom, and use the on-canvas Controls (zoom in/out, fit-view). The graph auto-fits whenever a new focus loads. Colors adapt automatically to light/dark theme.

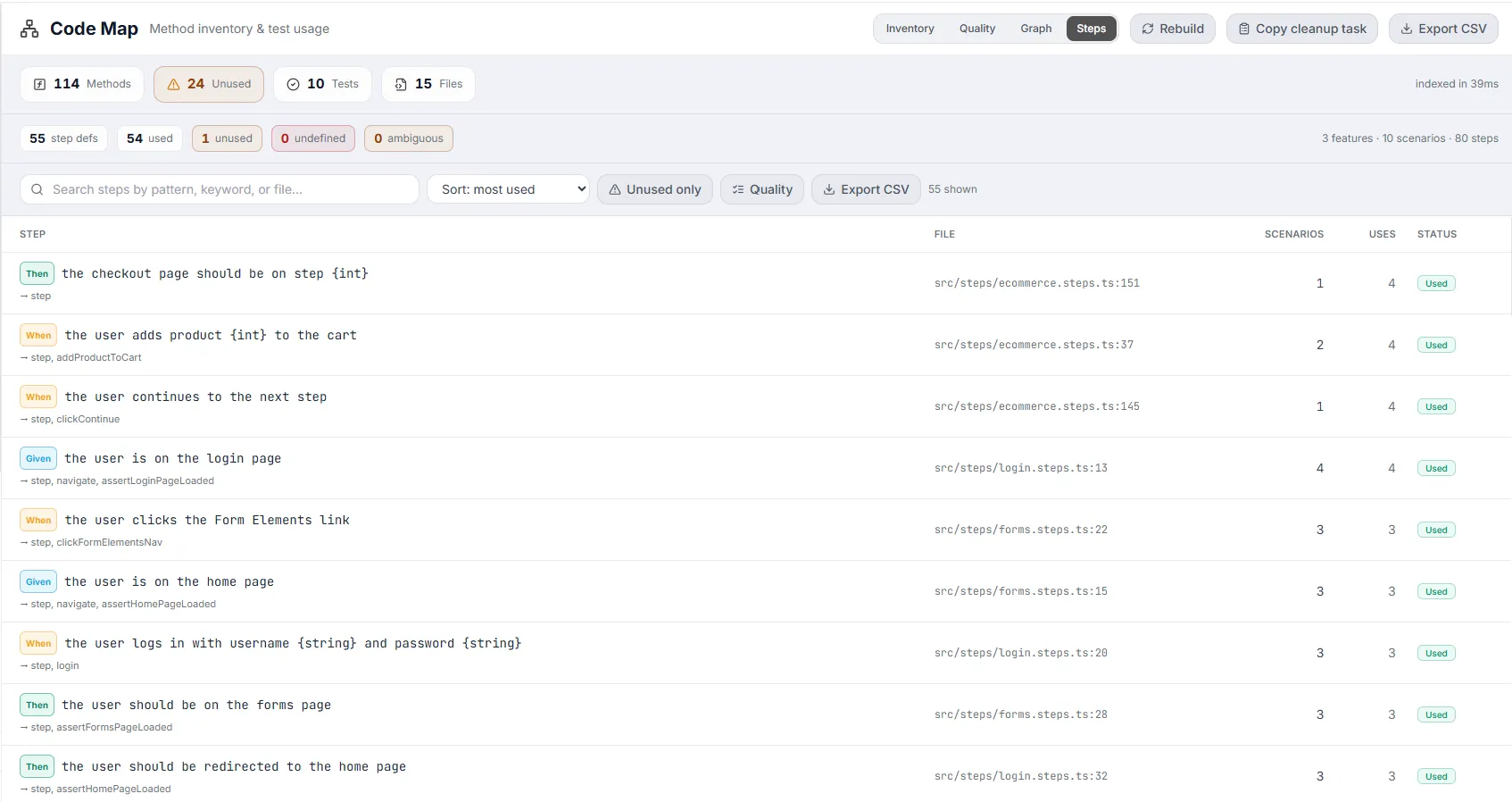

Steps View (BDD)

Available only for Gherkin/Cucumber projects. It inventories every step definition and — via a Quality toggle — surfaces BDD-specific problems. If no Gherkin is detected you’ll see “No Gherkin scenarios detected in this project.”

A stat row across the top shows: step defs, used, unused (amber), undefined (red), and ambiguous (amber), plus a right-aligned summary of features · scenarios · steps. Its own toolbar offers a search box (“Search steps by pattern, keyword, or file…”), a sort dropdown (most used / most scenarios / keyword / pattern / file), an Unused only toggle, a Quality toggle, and an Export CSV button.

The step table

Each row shows the step — a colored keyword badge (Given=sky, When=amber, Then=emerald, And/But=violet, Step=gray) plus the pattern, and below it the methods the step reaches (”→ …”). Other columns: File (file:line), Scenarios (how many use it), Uses (total usages), and Status (Used / Unused). Click a row to open the Step drawer.

The Step drawer mirrors the method drawer: a file link, tags (scenario count, use count, and “Unused — no scenario uses this” when applicable), an Explain this step AI button, a filterable Used by scenarios list (each opening in the Test Explorer, with feature name and scenario tags), a Reaches methods list (each opening that method in the Inventory drawer), and the Step definition source block.

Quality sub-view

Toggle Quality to swap the step table for BDD health sections (the search/sort/unused controls disable while it’s open):

Undefined steps — Gherkin steps with no matching definition (they fail at runtime as “step undefined”). Each shows the step text, how many times it occurs, the affected scenarios (clickable to the Test Explorer), and a Suggest definition AI button that proposes step-definition code.
Ambiguous steps — steps matching more than one definition (Cucumber raises an “ambiguous” error). Each lists the conflicting definitions with their files/lines.
Duplicate step definitions — the same pattern defined more than once. Each shows the members and a Consolidate AI button that suggests merging them.
Tags — every scenario tag and how many scenarios carry it (shown only when tags exist).

Common Tasks (How Do I…?)

I want to…	Do this
Find dead code to delete	Inventory → toggle Unused only (or Confirmed dead with coverage). Or open Quality → Orphan files for whole-file candidates.
Hand a cleanup list to a teammate or AI	Header → Copy cleanup task — a Markdown checklist of unused methods lands on your clipboard.
See which tests use a method	Click the method in Inventory → read the Used by tests section in the drawer.
Trace what a method calls / who calls it	Open the drawer’s Calls and Called by methods sections, or switch to Graph and focus the method.
Understand an unfamiliar method	Open its drawer → AI assists → Explain (or read the Source block).
Find the most fragile / complex code	Quality → Most complex methods and File maintainability (lowest scores first).
Find duplicated logic	Quality → Duplicate & near-duplicate methods, then Suggest consolidation.
Check BDD step health	Steps → Quality toggle (undefined, ambiguous, duplicate steps, tags).
Find unused step definitions	Steps → toggle Unused only.
Export the inventory for a report	Header → Export CSV (Steps view has its own CSV export).
Refresh after editing code	Header → Rebuild.

Tips & Best Practices

Treat every flag as a candidate. Unused/dead/orphan findings are static guesses — verify against reflection, dynamic dispatch, and runtime wiring before deleting.
Prefer Confirmed dead over Unused when coverage is available — a method that is both statically unused and never ran at runtime is a much safer removal.
Rebuild after edits. The index is cached; counts won’t update until you press Rebuild.
Start cleanup at the bottom of the maintainability list — the lowest-scoring files and modules give the biggest return.
Use the Graph to sanity-check before deleting — focus a method and confirm nothing meaningful flows into it.
Configure an AI provider in Settings to unlock Explain / Document / Safe-to-delete / Generate-test / consolidation suggestions; all of them are read-only.
Links open in new tabs — file and test links keep the Code Map open so you don’t lose your place.
Combine filters (search + role + sort + unused) to drill straight to the rows you care about.

Troubleshooting & FAQ

The Steps tab is missing. It only appears for Gherkin/BDD projects. If your project has no Cucumber features, the tab is hidden by design.

A method I know is used shows as Unused. Static analysis can’t see reflection, dynamic dispatch, or string-based invocation. Confirm with the Graph and your own knowledge before removing — the Code Map labels these as candidates for that reason.

There’s no Confirmed-dead chip or filter. Those appear only when runtime coverage data is available to Testver. Without coverage you still get the statically-derived Unused signal.

An AI assist returns “(no response … check that an AI provider is configured in Settings)”. No AI provider is set up. Configure one in Settings to enable Explain, Document, verdicts, test/step suggestions, and consolidation.

Counts look stale after I changed code. The index is cached — press Rebuild to force a fresh scan.

Export failed. An error toast describes the cause. Retry, and ensure your browser allows the download.

The graph says “graph truncated (large neighborhood)”. The focus method has too many connections to draw fully. Focus a more specific method, or read its relationships in the drawer instead.

The table says “No methods match your filters.” Your search/role/unused filters exclude everything — clear the search or reset the filters.

Are AI suggestions applied to my code? No. The drawer states it explicitly: AI suggestions are read-only and nothing in your project is changed. The same goes for browsing and exporting.
